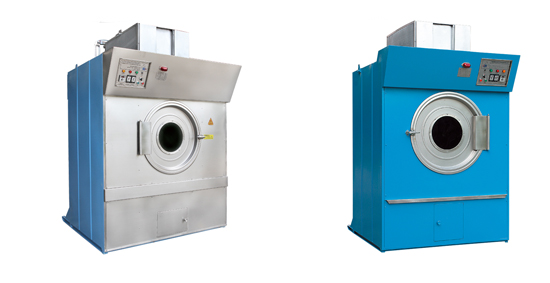

GDP Industrial Tumbler Dryer
This dryer of modem advanced level are thermal type that drying clothes by heat exchanger, ideal for drying fabric, line, nylon, silk, cotton, jeans, leather and latex. They are featured by not being limited by natural climate for factory, hotels, restaurants, hospital etc.
*Suitable for drying garments mdae of various fabrics such as cotton,jeans,woven fabric,knitted fabric,synthetic textile,etc.
*Cylinder is made in #304 Stainless Steel, Professional Punching Process, surface is smooth and durable
*Cylinder is connected with drive bearing tightly, and rotation is smooth and quiet, so that the clothes can be heated equally
*Installed with Digital Program Control System for accurate time & temperature control.
*Three Heating Resources for optional : Steam,Eletric and Gas.
*With Safety Protection in every Critical position, Convenient to install and operate.
| Model | GDP-30 | GDP-50 | gdp-80 | gdp-100 |
| Capacity | 13 | 22 | 36 | 45 |
| Cylinder Size | Φ550×600 | Φ700×550 | Φ910×750 | Φ970×970 |
| R.P.M. | 32 | 32 | 32 | 25 |
| Thickness of Cylinder | 1 | 1 | 1.5 | 1.5 |
| Motor Power | 0.55 | 0.55 | 0.75 | 1.1 |
| Exhaust power | 0.55 | 0.75 | 1.1 | 1.1 |
| Time-consuming | 25-30 | 25-30 | 25-30 | 25-30 |
| steam-consuming | 35 | 40 | 55 | 75 |
| Steam pressure | 0.4-0.8mpa | |||
| electric-consuming | 12 | 15 | 18 | 25 |
| diamension | 1100*650*1400 | 1100*815*1617 | 1350*1020*1950 | 1570*1100*2160 |
| net weight | 230 | 270 | 470 | 530 |
| Model | gdp-150 | gdp-200 | gdp-300 | gdp-400 |
| Capacity | 68 | 90 | 135 | 180 |
| Cylinder Size | Φ1150×970 | Φ1400×1070 | Φ1750×1070 | Φ1750×1370 |
| R.P.M. | 30 | 28 | 26 | 26 |
| Thickness of Cylinder | 2 | 2 | 2 | 2 |
| Motor Power | 1.1 | 2.2 | 3 | 4 |
| Exhaust power | 1.5 | 2.2 | 1.5 | 2.2 |
| Time-consuming | 30-40 | 30-40 | 30-40 | 30-40 |
| steam-consuming | 113 | 150 | 225 | 300 |
| Steam pressure | ||||
| electric-consuming | 30 | -- | -- | -- |
| diamension | 1600*1250*2280 | 2000*1530*2500 | 2100*1860*2680 | 2550*1870*2670 |
| net weight | 580 | 900 | 1300 | 1450 |
